Multi Color Porcelain Suspension Insulator / Cap And Pin Insulator

Dalian Hivolt Power System Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Multi Color Porcelain Suspension Insulator / Cap And Pin Insulator

Brand Name : HIVOLT

Model Number : L40BE200

Certification : CS/IEC

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Supply Ability : 20,000pcs per month

Packaging Details : Wooden pallets or wooden crates

Delivery Time : 5-8 weeks after PO

material : porcelain C130

glaze color : brown

connection way : socket & socket

standard : IEC

package : woode pallet or crate

line voltage : 11kV,25kV,33kV

Contact Now

Porcelain long rod Insulators for transmission lines below 25kV, IEC standard

Description:

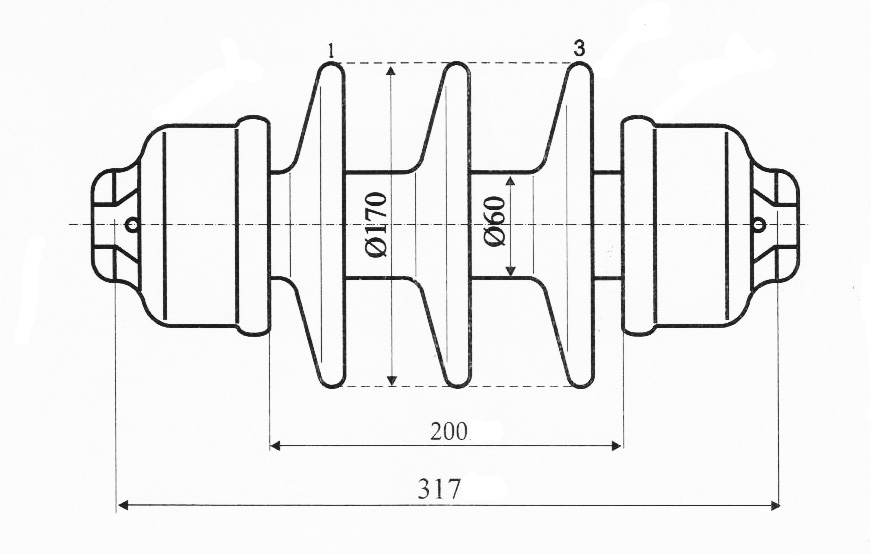

Technical Specifications for L40BE200 supension long rod insulator porcelain brown for EU market

Multi Color Porcelain Suspension Insulator / Cap And Pin Insulator

  Technical Specification Unit Value
1 Spacing mm 317
2 Shed Diameter mm 170
3 Creepage Distance mm 450
4 Mechanical failing load Strength Min. KN 40
6 Power Frequency withstand Voltage
  dry KV 80
  wet KV 50
7 Lightning Impulse withstand Voltage
  Positive KV 125
  Negative KV 130

L40BE200 supension long rod insulator mainly used in the market of EU countries .HIVOLT product export to many of those countries , and have very good reputation just because we use high quality materials for insulators :

1 the insulator cap use high density ductile iron ,we test each piece of caps with magnetic powder testing method .

The insulator cap surface are hot galvanized , zinc thickness meet related IEC standard .

​that is Min. zinc thickness are more than 85μm . the galvanization surface are smooth and shinning , and free of defect.

2 The insulation parts are made of high aluminum porcelain C130 . the porcelain surface covered a layer of hard glaze , color brown , we can also produce such product with color white , grey or as per customer's specifications.

3 the material​ of R -clip is stainless steel which guarantee insulator string connection very safety .

4 we use excellent Portland cement to assemble porcelain body and related cap .​ even after years of servicing , the cement still keep good performance.

Applications:

L40BE200 supension long rod insulator are suitable for tension string or suspension string in transmission or distribution lines from 11kV , 25kV or 33kV .

Competitive Advantage:

L40BE200 supension long rod insulator have a very reliable electrical & machincal character .

the failure rate is lower than 1 per 100000 .

we offer 3 years quality guarantee period , if the product has inside defect , we will replace it free of charge .

The porcelain glaze are hard and shinning , it has very good self-cleaning advantage . it is easy for maintenance .

the insulator are non-punctured product . so the transmission line maintainese will be much more easier .
